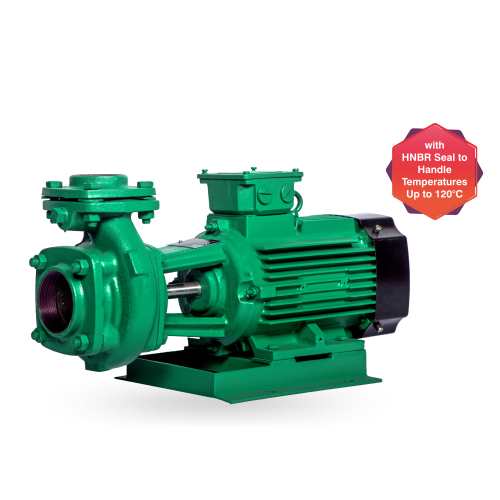

KDI EE4
- Buy Now
Max Head:
Upto 68 mMax Capacity:
Upto 32.8
Product Description
- Air conditioning and refrigeration system
- Cooling towers
- Fire fighting
- Water supply
- Clear water handling at high pressure in industries
- Clear water handling in ETP/STP Plants
- Handling hot water in par boiled rice making machines
- Hot water handling at High Pressure in Industries
Product Details
SPECIFICATIONS
- Head Range - Up to 68 M
- Discharge Range - Up to 32.8 lps
- Power Rating - 2 HP - 10 HP
- Phase - 3 Ø
- RPM - 2900
MATERIAL OF CONSTRUCTION
- Motor Body - Cast Iron
- Impeller - Cast Iron/Gun Metal/Stainless Steel
- Delivery Casing - Cast Iron
- Shaft - Stainless Steel
- Insulation - F Class
- Protection - IP 55
- Sealing - Mechanical Seal
- (Carbon vs Ceramic with HNBR which can withstand fluid temperature up to 120°C)
FEATURES
- Premium efficiency IE4 Motor and energy saving design
- Superior Mechanical Seal
- Cathodic Electro Deposition (CED) Coating
- Dynamically balanced rotating parts
- Replaceable Wearing Parts
- Flatter Efficiency Curve
- Design to Prevent Overloading
- Automatic Air Release
KDI EE4
- Air conditioning and refrigeration system
- Cooling towers
- Fire fighting
- Water supply
- Clear water handling at high pressure in industries
- Clear water handling in ETP/STP Plants
- Handling hot water in par boiled rice making machines
- Hot water handling at High Pressure in Industries
PRIMARY USAGE
APPLICATION
- Air conditioning and refrigeration system
- Cooling towers
- Fire fighting
- Water supply
- Clear water handling at high pressure in industries
- Clear water handling in ETP/STP Plants
- Handling hot water in par boiled rice making machines
- Hot water handling at High Pressure in Industries
SPECIFICATIONS
- Head Range - Up to 68 M
- Discharge Range - Up to 32.8 lps
- Power Rating - 2 HP - 10 HP
- Phase - 3 Ø
- RPM - 2900
MATERIAL OF CONSTRUCTION
- Motor Body - Cast Iron
- Impeller - Cast Iron/Gun Metal/Stainless Steel
- Delivery Casing - Cast Iron
- Shaft - Stainless Steel
- Insulation - F Class
- Protection - IP 55
- Sealing - Mechanical Seal
- (Carbon vs Ceramic with HNBR which can withstand fluid temperature up to 120°C)
FEATURES
- Premium efficiency IE4 Motor and energy saving design
- Superior Mechanical Seal
- Cathodic Electro Deposition (CED) Coating
- Dynamically balanced rotating parts
- Replaceable Wearing Parts
- Flatter Efficiency Curve
- Design to Prevent Overloading
- Automatic Air Release
DOWNLOADS
