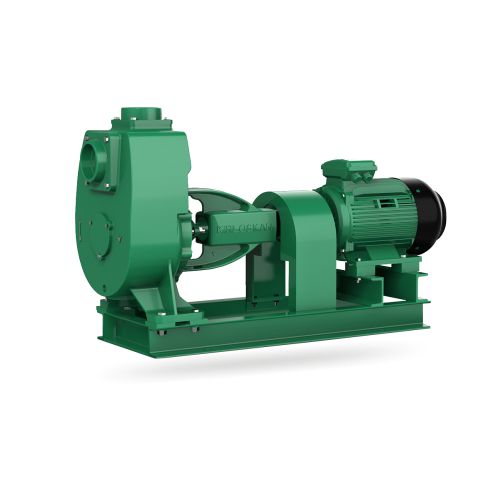

SP-Coupled Set with IE4 Motor
- Buy Now
Max Head:
Upto 36 mMax Capacity:
Upto 75 LPS
Product Description
- Handling light chemicals, effluents, sewage, ash water, etc.
- Flood / Rain water handling
- Draining foundations, trenches and pits
- Pumping water from docks, ports, vessels
- Draining accumulated water from basements, road, highways, parking lots, etc.
- Cooling water for marine engines, shovels and piling equipment
Product Details
TECHNICAL SPECIFICATIONS
- Head range: Up to 36 metres
- Discharge range: Up to 75 LPS
- Power rating: 0.75 - 18.7 kW (1 - 25 HP)
- Voltage range: 415±10%
- Class of insulation: F class (Insulation with Temperature rise restricted to B Class)
- Protection: IP 55
MATERIAL OF CONSTRUCTION
- Impeller : Cast Iron / Stainless Steel / Bronze
- Motor Body : Cast Iron
- Delivery Casing : Cast Iron
- Pump Shaft : Carbon Steel / Stainless Steel
- Shaft Sleeve : Stainless Steel
- Sealing : Gland Packed / Mechanical Seal with HNBR
(withstand fluid temperature up to 120°C)
FEATURES
- Premium efficiency
- High grade F-Class insulation with Temperature rise limited to B-Class
- High efficiencies achieved with AC induction motor design
- Higher Specific Discharge (discharge rate per unit power)
- CED Coated Impeller
- Optimum fan and fan cover design
- Self-priming
- Non-clog Impeller
- Dynamically Balanced Rotating Parts
SP-Coupled Set with IE4 Motor
- Handling light chemicals, effluents, sewage, ash water, etc.
- Flood / Rain water handling
- Draining foundations, trenches and pits
- Pumping water from docks, ports, vessels
- Draining accumulated water from basements, road, highways, parking lots, etc.
- Cooling water for marine engines, shovels and piling equipment
APPLICATIONS
- Handling light chemicals, effluents, sewage, ash water, etc.
- Flood / Rain water handling
- Draining foundations, trenches and pits
- Pumping water from docks, ports, vessels
- Draining accumulated water from basements, road, highways, parking lots, etc.
- Cooling water for marine engines, shovels and piling equipment
TECHNICAL SPECIFICATIONS
- Head range: Up to 36 metres
- Discharge range: Up to 75 LPS
- Power rating: 0.75 - 18.7 kW (1 - 25 HP)
- Voltage range: 415±10%
- Class of insulation: F class (Insulation with Temperature rise restricted to B Class)
- Protection: IP 55
MATERIAL OF CONSTRUCTION
- Impeller : Cast Iron / Stainless Steel / Bronze
- Motor Body : Cast Iron
- Delivery Casing : Cast Iron
- Pump Shaft : Carbon Steel / Stainless Steel
- Shaft Sleeve : Stainless Steel
- Sealing : Gland Packed / Mechanical Seal with HNBR
(withstand fluid temperature up to 120°C)
FEATURES
- Premium efficiency
- High grade F-Class insulation with Temperature rise limited to B-Class
- High efficiencies achieved with AC induction motor design
- Higher Specific Discharge (discharge rate per unit power)
- CED Coated Impeller
- Optimum fan and fan cover design
- Self-priming
- Non-clog Impeller
- Dynamically Balanced Rotating Parts
