KBL Launches SP Coupled Pumpset With IE5 Motor Offering Ultra-Premium Efficiencies

July 30, 2021

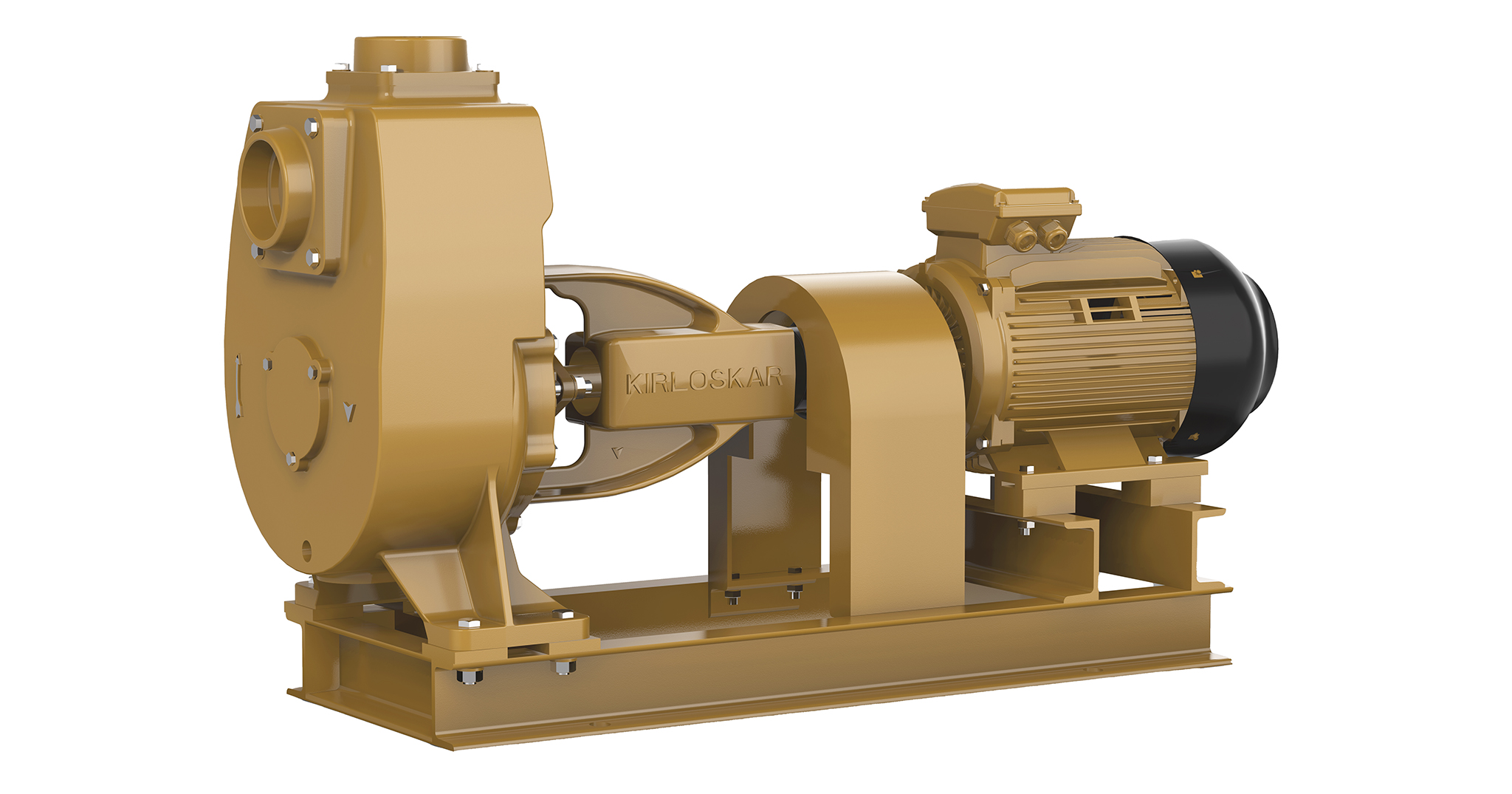

The newly launched SP Coupled Pumpset from KBL offers Ultra-Premium Efficiency with high specific discharge resulting in 16.5% less energy consumption for pumping the same amount of liquid. Equipped with IE5 motor, the launch of this advanced SP coupled pumpset is another big step towards KBL's commitment to offering superior customer value.

This new pumpset offers an array of features like superior quality Gland packed/mechanical seal that ensures zero leakage, lower friction loss, protects from wearing of the shaft, thus resulting in easy maintenance and longer life. With the hydrogenating acrylonitrile butadiene rubber (HNBR) and ceramic combination, it can withstand fluid temperature up to 120 degrees.

The SP Coupled pumpset with IE5 motor has high efficiencies achieved with AC induction motor design. It is easy to operate, maintain, and service at local levels as there are no permanent magnets, added accessories or control equipment. With a robust design and high-grade insulation, it is most suited to work under varied field conditions. It can withstand extreme power fluctuation, guaranteeing reliability, enhanced equipment safety and longer life.

The CED Coated Impeller of the latest coating technology offers corrosion resistance with uniform coating, resulting in longer life. The Non-clog impeller helps handle suspended soft solids up to 40 mm in size, making it suitable for wastewater handling, sewage handling and dewatering applications.

With Self Priming, you are no longer required to set the priming with the foot valve, thus resulting in quicker start-up time. It has a head range of up to 32 meters and a discharge up to 75 litre/sec. Equipped with optimum fan and fan cover design for optimum cooling and silent operation, KBL's proudly “Made In India” next-gen SP coupled Pumpset with IE5 motor promises reliability, durability and significant savings.
