Applications

• Gardens and fountains
• Feed water to RO plants
• Domestic water supply
• Water supply to overhead tanks in bungalows
• Construction sites
• Car washing
• Lawn sprinklers

SPECIFICATIONS

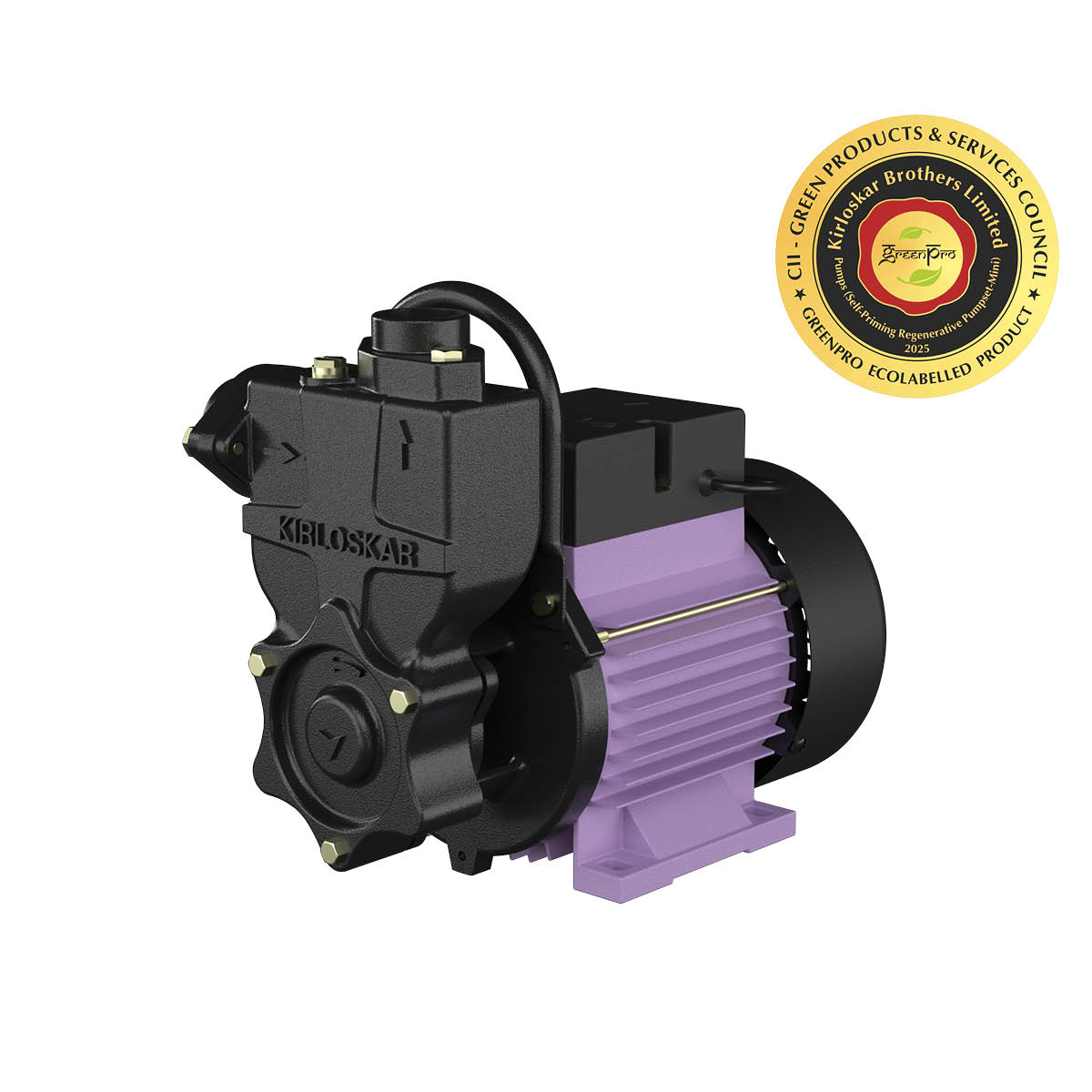

JALTARA - (GOLD)
Model Jaltara-II (Gold)

• Head Range: 6-36m
• Capacity Range: 3000 to 850 LPH
• Power Rating: 0.37 kW/0.5 HP
• Phase: Single
• Voltage Range: 180-260 Volts
• Insulation: ‘F’ Class

Model Jaltara-I (Gold)

• Head Range: 6-55m
• Capacity Range:  4300 to 800 LPH
• Power Rating: 0.75 kW/1.0 HP
• Phase: Single
• Voltage Range: 180-260 Volts
• Insulation: ‘F’ Class

MATERIAL OF CONSTRUCTION

• Impeller: Brass
• Delivery Casing: Cast Iron
• Motor Body: Aluminum
• Shaft: Carbon Steel
• Cover NDE: Aluminum
• Mechanical Seal: Carbon Vs. Ceramic

FEATURES

• High Efficiency and Energy Saving Design
• High Grade F - Class Insulation
• Thermal Overload Protector (TOP)
• Wide Voltage Range
• Shielded Ball Bearing
• Dynamically Balanced Rotating Parts
• Easy Maintainable Designs
• High Suction Lift
• Enhanced Safety Features
