• Max Head:
    Upto 251 m

  • Max Capacity:
    Upto 350 LPM

Product Description

  • Domestic and Community Water Supply
  • Water Supplies for High Rise Building
  • Gardening and Small Farm Irrigation
  • Construction Site
  • Ground Water Supply to Water Works

Product Details

SPECIFICATIONS

  • Head Range: Up to 251 metres
  • Discharge Range: Up to 350 LPM
  • Power Ratings: 0.37 to 4.0 kW (0.5 to 5.5 HP)
  • Voltage Range: 150 to 240 volts (single phase) 280 to 440 volts (three phase)
  • Type of Cooling: Oil-cooled
  • Insulation: F class
  • Protection: IP 68

MATERIAL OF CONSTRUCTION

  • Pump Housing: Stainless Steel
  • Pump Shaft: Stainless Steel
  • Motor Housing: Stainless Steel
  • Motor Shaft: Stainless Steel
  • Motor Bearing: Ball Bearing
  • Pump Bushes: Gun Metal
  • Impeller: Noryl
  • Diffuser: Noryl
  • NRV: Stainless Steel
  • Suction: Stainless Steel

FEATURES

  • High Efficiency and Energy Saving Design
  • CED – Cathode Electro Deposition Coating
  • Dynamically Balanced Rotating Parts
  • Designed to Prevent Overloading
  • Lightweight and Compact Design
  • Splined Shaft
  • Flatter Efficiency Curve
  • Suitable for Horizontal Applications

Downloads

Product Catalogue

Product Catalogue

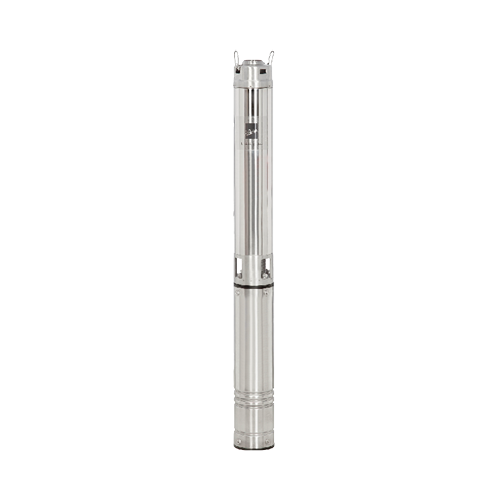

KU4

  • Domestic and Community Water Supply
  • Water Supplies for High Rise Building
  • Gardening and Small Farm Irrigation
  • Construction Site
  • Ground Water Supply to Water Works

PRIMARY USAGE

APPLICATIONS

  • Domestic and Community Water Supply
  • Water Supplies for High Rise Building
  • Gardening and Small Farm Irrigation
  • Construction Site
  • Ground Water Supply to Water Works

SPECIFICATIONS

  • Head Range: Up to 251 metres
  • Discharge Range: Up to 350 LPM
  • Power Ratings: 0.37 to 4.0 kW (0.5 to 5.5 HP)
  • Voltage Range: 150 to 240 volts (single phase) 280 to 440 volts (three phase)
  • Type of Cooling: Oil-cooled
  • Insulation: F class
  • Protection: IP 68

MATERIAL OF CONSTRUCTION

  • Pump Housing: Stainless Steel
  • Pump Shaft: Stainless Steel
  • Motor Housing: Stainless Steel
  • Motor Shaft: Stainless Steel
  • Motor Bearing: Ball Bearing
  • Pump Bushes: Gun Metal
  • Impeller: Noryl
  • Diffuser: Noryl
  • NRV: Stainless Steel
  • Suction: Stainless Steel

FEATURES

  • High Efficiency and Energy Saving Design
  • CED – Cathode Electro Deposition Coating
  • Dynamically Balanced Rotating Parts
  • Designed to Prevent Overloading
  • Lightweight and Compact Design
  • Splined Shaft
  • Flatter Efficiency Curve
  • Suitable for Horizontal Applications

DOWNLOADS

Product Catalogues
