Applications

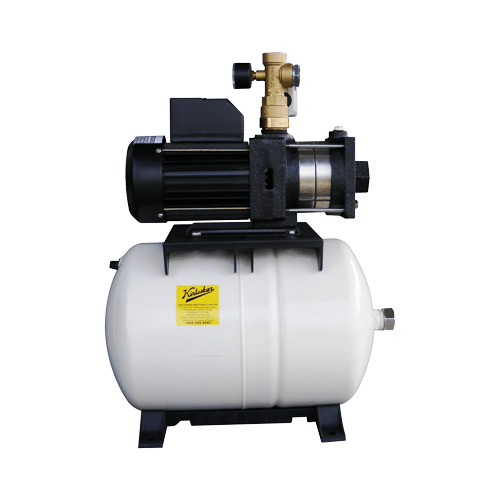

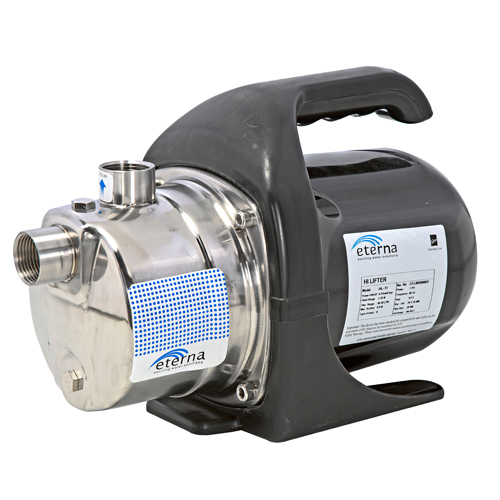

1.     KBL 's High Lifter (HL) pump series, as the name suggests is designed to lift water to greater height at a higher pressure, which makes it ideal for a wide range of domestic applications. It can be duly converted into a new generation  of pressure boosting system that can be immensely useful for lifting water while maintaining uniform pressure across all levels in multi-storey apartments and bungalows as well as for pumping water from shallow wells and tanks .

• Lifting water to apartments and bungalows
• Pumping water from shallow wells and tanks
• Suitable for pressure boosting system

Technical Specifications

• Head Range: Up to 50 metres
• Discharge Range: Up to 75 LPM
• Power Rating: 0.37 to 0.93 kW (0.5 to 1.25 HP)
• Voltage Range: 240 volts ± 10%

Material of Construction

• Part : Single Stage (HL) Multi Stage (HL MS)
• Pump casing : Stainless Steel Stainless Steel
• Impeller : Stainless Steel Noryl
• Shaft : Superior Steel
• Mechanical Seal : Carbon / Ceramic

Features

• Corrosion, erosion and rust-free, maintains water hygienic & safe for drinking
• Suitable for lifting water to greater heights with higher pressure
• Dynamically balanced rotating components for consistence performance
• Base support for stability and reduction in noise / vibrant
• Thermal overload protector to prevent motor burning
• Ready for conversion into a new generation pressure boosting system
