APPLICATIONS

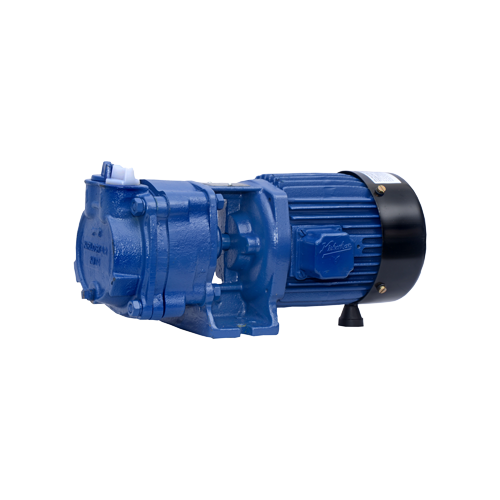

KBL’s exclusive range of KV/DV vacuum pumps are majorly used for priming of large pumps. As the name suggests, these are also used to create a ‘vacuum’ by enabling evacuation of air and thus are widely used for applications like drying, evaporation, degasification, condensation, etc.

• Priming of Large Pumps
• Evacuation of Air from Suction Pipes and Chambers
• Twist Drilling Machine, Removing Water from Pulp Layer, Labelling, Bottle Filling, De-odorising, etc.
• Drying, Evaporation, Distillation, Filtration, Sterilisation, Condensation, Degasification, Sucking Gases, etc.
• Extrusion Machines

SPECIFICATIONS

• Vacuum: Up to 640 mm of mercury
• Air Flow Rate: Up to 162 m/h(at mean sea level)
• Power Ratings: 3.7 to 7.5 kW (5 to 10 HP)
• Voltage Range: 375 to 455 volts (three phase)
• Insulation: F class
• Protection: IP 55

MATERIAL OF CONSTRUCTION

• Rotor (Impeller) : Stainless Steel
• Delivery Casing : Cast Iron
• Motor Body : Cast Iron
• Pump Shaft : Carbon Steel

FEATURES

• Wide Voltage Design
• Designed to Prevent Overloading
• Replaceable Wearing Parts
• Dynamically Balanced Rotating Parts
