• Max Head:
    Upto 6 to 30 m

  • Max Capacity:
    Upto 650 to 2700 LPH

Product Description

  • Water supply to overhead tanks in bungalows
  • Gardens / Fountains
  • Feed water to RO plants
  • Domestic water supply
  • Construction sites
  • Car washing
  • Lawn sprinklers

Product Details

SPECIFICATIONS

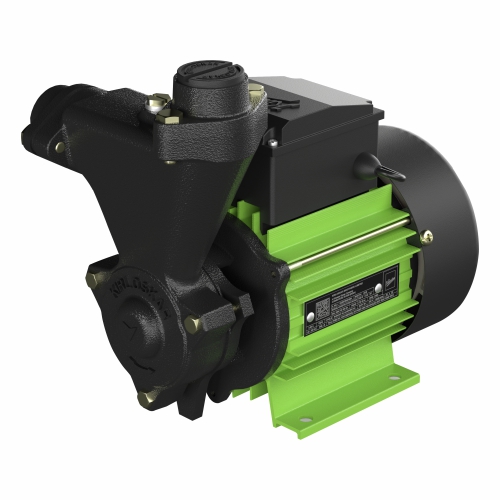

ANAYA

  • Head : 6 to 21 meters
  • Capacity Range : 1980 to 680 LPH
  • Power Ratings : 0.37 kW / 0.5 HP
  • Phase : Single
  • Voltage Range : 180 to 260 Volts
  • Insulation : B CLASS

MATERIAL OF CONSTRUCTION

  • Impeller : Brass
  • Delivery Casing : Cast Iron
  • Motor Body : Aluminium
  • Pump Shaft : Carbon Steel
  • Cover NDE : Aluminium
  • Seal : Carbon Vs Ceramic

FEATURES

  • Cathodic Electro Deposition (CED) Coating
  • Advanced Electrical Design
  • Wide Voltage Range Operability
  • Lightweight and Compact Design
  • High Suction Lift
  • Enhanced Safety Features
  • Dynamically Balanced Rotating Parts
  • TOP - Thermal Overload Protector
  • Shielded Ball Bearing

Downloads

Product Catalogue

ANAYA

  • Water supply to overhead tanks in bungalows
  • Gardens / Fountains
  • Feed water to RO plants
  • Domestic water supply
  • Construction sites
  • Car washing
  • Lawn sprinklers

PRIMARY USAGE

APPLICATIONS

  • Water supply to overhead tanks in bungalows
  • Gardens / Fountains
  • Feed water to RO plants
  • Domestic water supply
  • Construction sites
  • Car washing
  • Lawn sprinklers

SPECIFICATIONS

ANAYA

  • Head : 6 to 21 meters
  • Capacity Range : 1980 to 680 LPH
  • Power Ratings : 0.37 kW / 0.5 HP
  • Phase : Single
  • Voltage Range : 180 to 260 Volts
  • Insulation : B CLASS

MATERIAL OF CONSTRUCTION

  • Impeller : Brass
  • Delivery Casing : Cast Iron
  • Motor Body : Aluminium
  • Pump Shaft : Carbon Steel
  • Cover NDE : Aluminium
  • Seal : Carbon Vs Ceramic

FEATURES

  • Cathodic Electro Deposition (CED) Coating
  • Advanced Electrical Design
  • Wide Voltage Range Operability
  • Lightweight and Compact Design
  • High Suction Lift
  • Enhanced Safety Features
  • Dynamically Balanced Rotating Parts
  • TOP - Thermal Overload Protector
  • Shielded Ball Bearing

DOWNLOADS

Product Catalogues
