Monitor Your Pump Anytime,
Anywhere With Kirlo-Smart
Watch Video

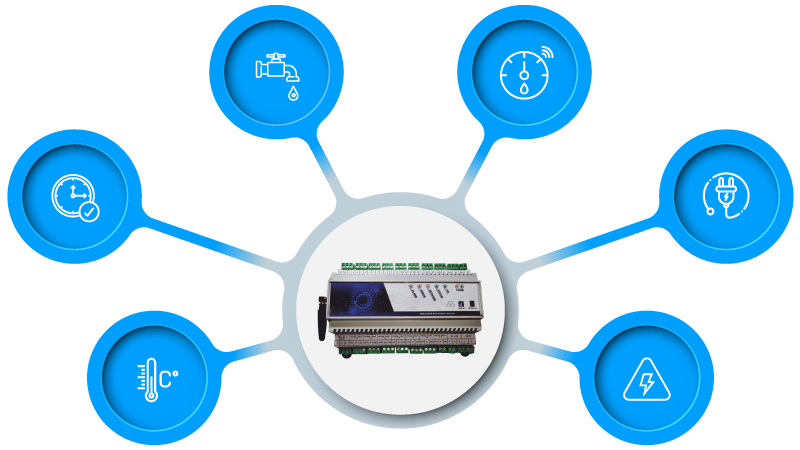

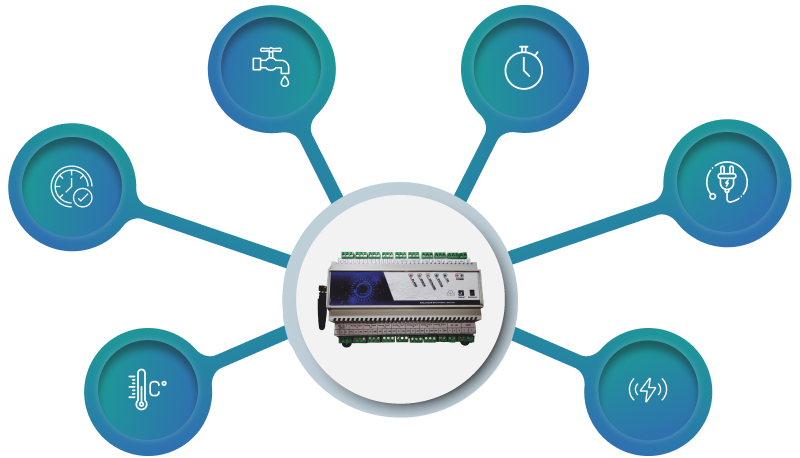

Features & Benefits Of Kirlo-Smart

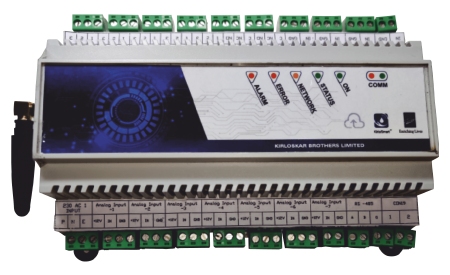

Technical Specifications

Degree of protection: IP 20

Ambient temperature: 0 to 50 deg C

Supply Voltage: Auxilary Input Voltage : 230 V AC,50 Hz

Storage Memory : 8GB SD card Supported

Interfaces : Isolated Rs485 port: Connection between KirloSmart and Slave devices (MFM/PLC/Drive), RJ 45 Ethernet port: For TCP/IP Connectivity

Digital Input : 4 Isolated Digital Inputs ( Potential free contact)

Analog Input : RTD – 5 Inputs
4 – 20 mA (Loop powered 12V DC) – 7 Inputs

Communication : Mobile Data (GPRS) or Ethernet

LED Indication : System Health, Data Communication, Slave Communication, Power On, Alarm

Termination : Screw type Termination

Dimension : 178(L) X 116 (H) X 57(W) Approx..

Housing Material : ABS

Self

Automatic monitoring and analysis of your pump status

Monitoring

Monitoring is possible anywhere at any time by anyone

Analysis

Get a web-based quick and detailed analysis

Reporting

Get reports on spare management and on spares that need replacement

Technology

Uses the latest technology with GPRS and ethernet facility

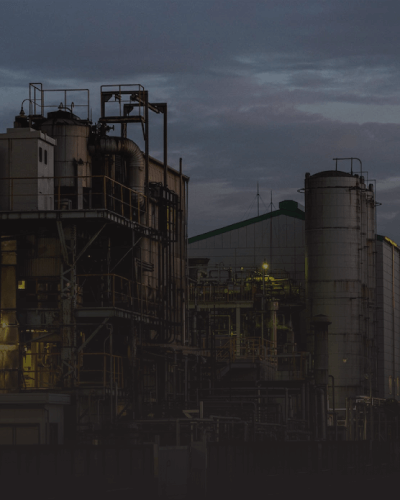

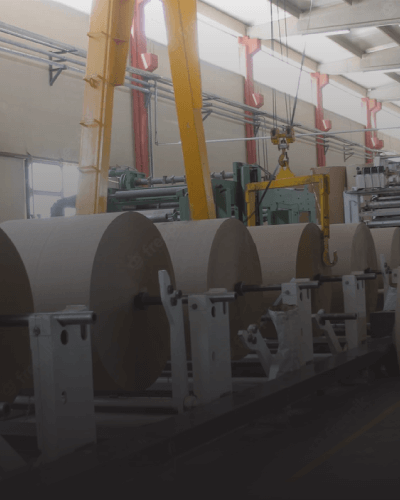

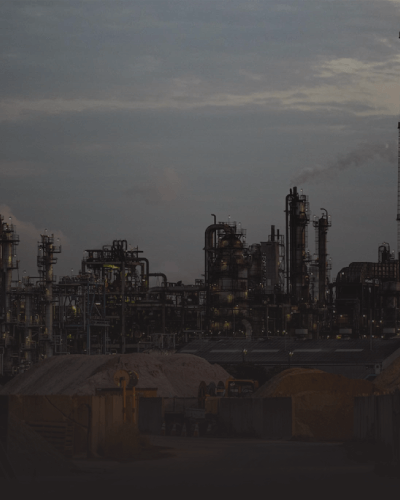

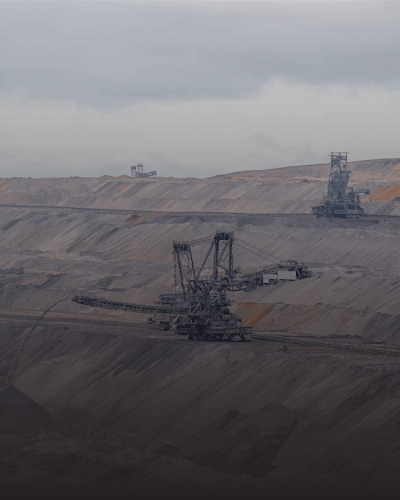

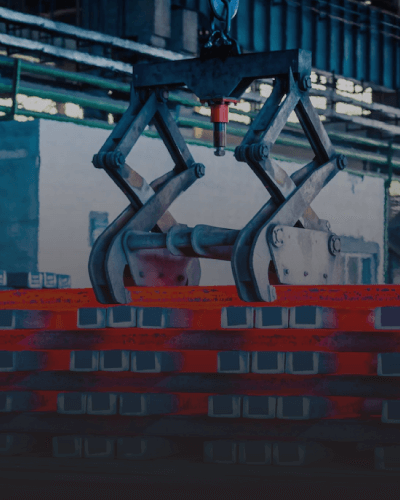

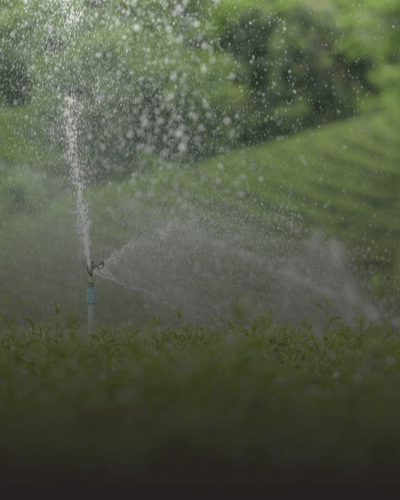

Kirlo-Smart Markets
