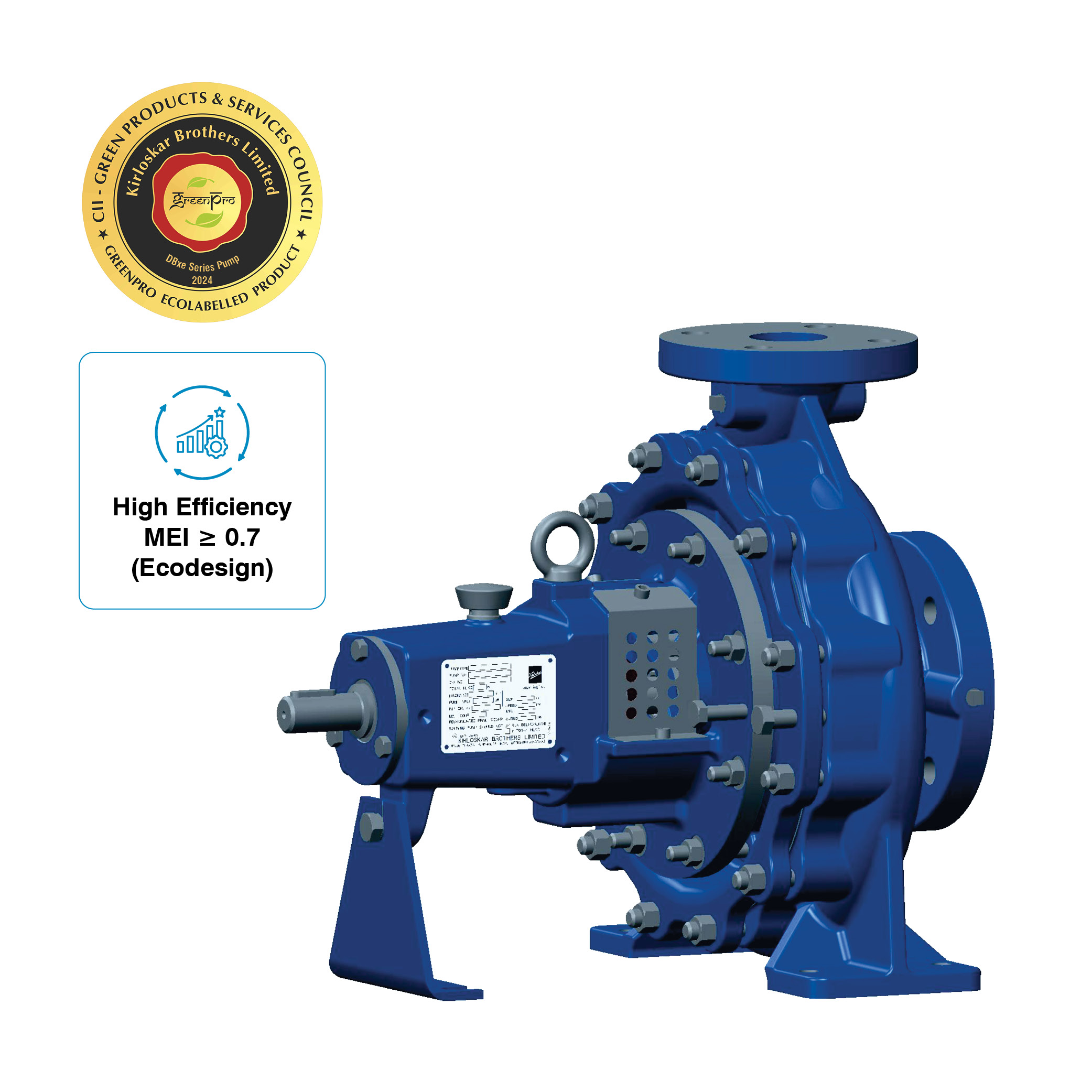

End Suction Pump - DBxe
- Enquire Now
Max Head:
Upto 100 mMax Capacity:
Upto 550 m3/hr
Product Description
DBxe designed to conform to EN733/DIN24255, is setting a new benchmark in energy-efficient water pumps. Its innovative back-pull-out design facilitated by spacer-type coupling, allows easy removal of the rotating unit for inspection and repairs without disturbing the pipe connections and the motor. These pumps are available in gland-packed and mechanically sealed configurations, offering flexibility for various applications.
A standout feature of the DBxe pump series is its compliance with the Minimum Efficiency Index (MEI) requirement of ≥ 0.7 as per EN 16480. Due to the rigorous calculation process of the MEI, it serves as the most reliable indicator of pump efficiency. While the minimum MEI threshold is 0.4, an MEI of 0.7 or more, represents the pinnacle of efficiency. This high MEI of DBxe pumps indicates its superior hydraulic performance and efficiency. This ensures reduced energy wastage, lower electricity costs and sustainable operation.
The DBxe pump has rightfully earned the GreenPro Ecolabel certification, a Type-1 Ecolabel accredited by the Global Ecolabelling Network (GEN). This certification ensures its complete adherence to global sustainability standards. DBxe pumps with a low carbon footprint contribute to a lower environmental impact.
Product Details
Applications
- Water supply
- Sprinkler
- Air conditioning
- Industrial water
- Swimming pool water
- Hot water (Up to 90 C)
- Fire fighting
- Drinking water/Potable water
- Cooling water
- Condensate
- Clean juice in sugar industry
- Solvent in pharma industry
- Alcohol in distillery
Specifications
- Delivery size: 32 to 150 mm
- Capacity: Up to 550 m3/hr
- Head: Up to 100 meters
- Speed from 1450 & 2900 rpm, 1760 & 3500 rpm
- Working Pressure: 16 kg/cm2 (MAWP)
- Temperature from -10° C to 90° C
- Sealing: Gland Packed (Standard), Mechanical Seal (Against Order)
- Lubrication: Grease (Standard) & Oil (Against Order)
Material
- Pump Casing / Casing Cover: Cast Iron
- Impeller: Cast Iron / Bronze / CF8M/ CF8
- Wear Rings: Cast Iron / Bronze
- Pump Shaft: CS 45C8 / St. Steel ASTMA-276 TYPE 410
- Shaft Sleeve: Stainless Steel - ASTM A 276 Type 410 H
Features
- The casing has axial suction and top centre line delivery with self venting design
- The impellers are statically and dynamically balanced
- Shaft is fully protected from the liquid being handled
- The stuffing box is sealed by either gland packing or by mechanical seal (DIN/Cartridge)
- Pre-lubricated grease sealed bearings are used as a standard scope of supply
- Clockwise when viewed from driving end
- Pumps can be driven by electric motor or engine
