• Max Head:
    Upto 44 m

Product Description

  • Handling Chemicals, Effluents, Sewage and Ash-Water
  • De-Watering Foundation, Trenches and Pits
  • Flood Water Handling
  • Pumping Water from Docks, Ports, Vessels
  • Dewatering from Basements, Multi-storeys, Shopping Malls, Godowns, etc.
  • Cooling Water for Marine Engines and Shovels

Product Details

Specifications

  • Head range: Up to 44 metres
  • Discharge range: Up to 80 lps
  • Power rating: 0.75 - 18.7 kW (1 - 25 HP) motor coupled
  • Voltage range: 300 - 440V (three phase (for motor coupled only)
  • Class of insulation: F class (motor coupled only)
  • Protection: IP 55

Material

  • Impeller: Cast Iron/Stainless Steel/Bronze
  • Motor Body: N/A
  • Delivery Casing: Cast Iron
  • Shaft: Carbon Steel/Stainless Steel
  • Shaft Sleeve: Stainless Steel
  • Sealing: Gland Packed/Mechanical Seal

Features

  • Self-priming
  • Non-clog impeller
  • Flatter Efficiency Curve
  • Designed to Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Replaceable Wearing Parts
  • CED – Cathode Electro Deposition Coating
  • Easy Maintainable Design

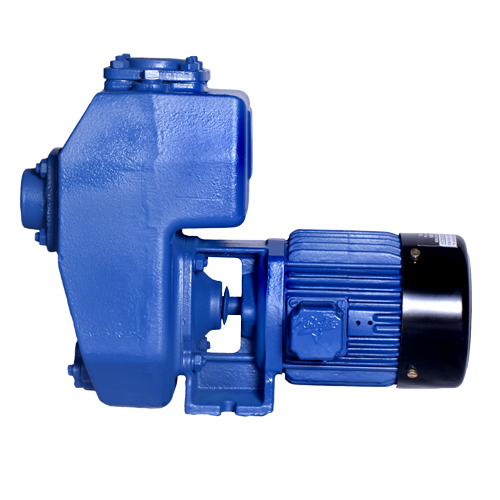

Self-priming Pump - SP

Self-priming Pump - SP

  • Handling Chemicals, Effluents, Sewage and Ash-Water
  • De-Watering Foundation, Trenches and Pits
  • Flood Water Handling
  • Pumping Water from Docks, Ports, Vessels
  • Dewatering from Basements, Multi-storeys, Shopping Malls, Godowns, etc.
  • Cooling Water for Marine Engines and Shovels

PRIMARY USAGE

SPECIFICATIONS

  • Head range: Up to 44 metres
  • Discharge range: Up to 80 lps
  • Power rating: 0.75 - 18.7 kW (1 - 25 HP) motor coupled
  • Voltage range: 300 - 440V (three phase (for motor coupled only)
  • Class of insulation: F class (motor coupled only)
  • Protection: IP 55

MATERIAL

  • Impeller: Cast Iron/Stainless Steel/Bronze
  • Motor Body: N/A
  • Delivery Casing: Cast Iron
  • Shaft: Carbon Steel/Stainless Steel
  • Shaft Sleeve: Stainless Steel
  • Sealing: Gland Packed/Mechanical Seal

FEATURES

  • Self-priming
  • Non-clog impeller
  • Flatter Efficiency Curve
  • Designed to Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Replaceable Wearing Parts
  • CED – Cathode Electro Deposition Coating
  • Easy Maintainable Design
