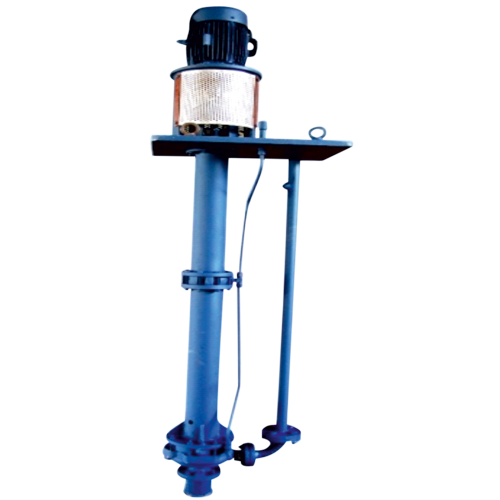

Sump Pump - KPDS
- Enquire Now
Max Head:
Upto 150 mMax Capacity:
Upto 750 m3/hr
Product Description
Kirloskar KPDS sump pump is used for process applications. It has a wide range of applications in various chemical process industries. KPD-S type sump pumps are manufactured to close tolerances and as per rigid specifications.
Product Details
Applications
- Petrochemicals, refineries, fertiliser and power industries
- Transfer and circulation of acids, alkalis, solvent oil, etc.
- Highly alkaline and highly acidic liquids (with enclosed impeller)
- Crystallising liquids, liquids containing suspended solids, industrial clear effluent
Specifications
- Delivery size from 20 mm to 200 mm
- Capacity from .5 to 750 m3/hr
- Head up to 150 metres
- Temperature up to 90°C
Features
- Vertical submerged, single stage, single suction pump
- Vertical shaft arrangement
- Side discharge pump with space saving installation
Sump Pump - KPDS
Kirloskar KPDS sump pump is used for process applications. It has a wide range of applications in various chemical process industries. KPD-S type sump pumps are manufactured to close tolerances and as per rigid specifications.
PRIMARY USAGE
APPLICATIONS
- Petrochemicals, refineries, fertiliser and power industries
- Transfer and circulation of acids, alkalis, solvent oil, etc.
- Highly alkaline and highly acidic liquids (with enclosed impeller)
- Crystallising liquids, liquids containing suspended solids, industrial clear effluent
SPECIFICATIONS
- Delivery size from 20 mm to 200 mm
- Capacity from .5 to 750 m3/hr
- Head up to 150 metres
- Temperature up to 90°C
FEATURES
- Vertical submerged, single stage, single suction pump
- Vertical shaft arrangement
- Side discharge pump with space saving installation
