Product Description

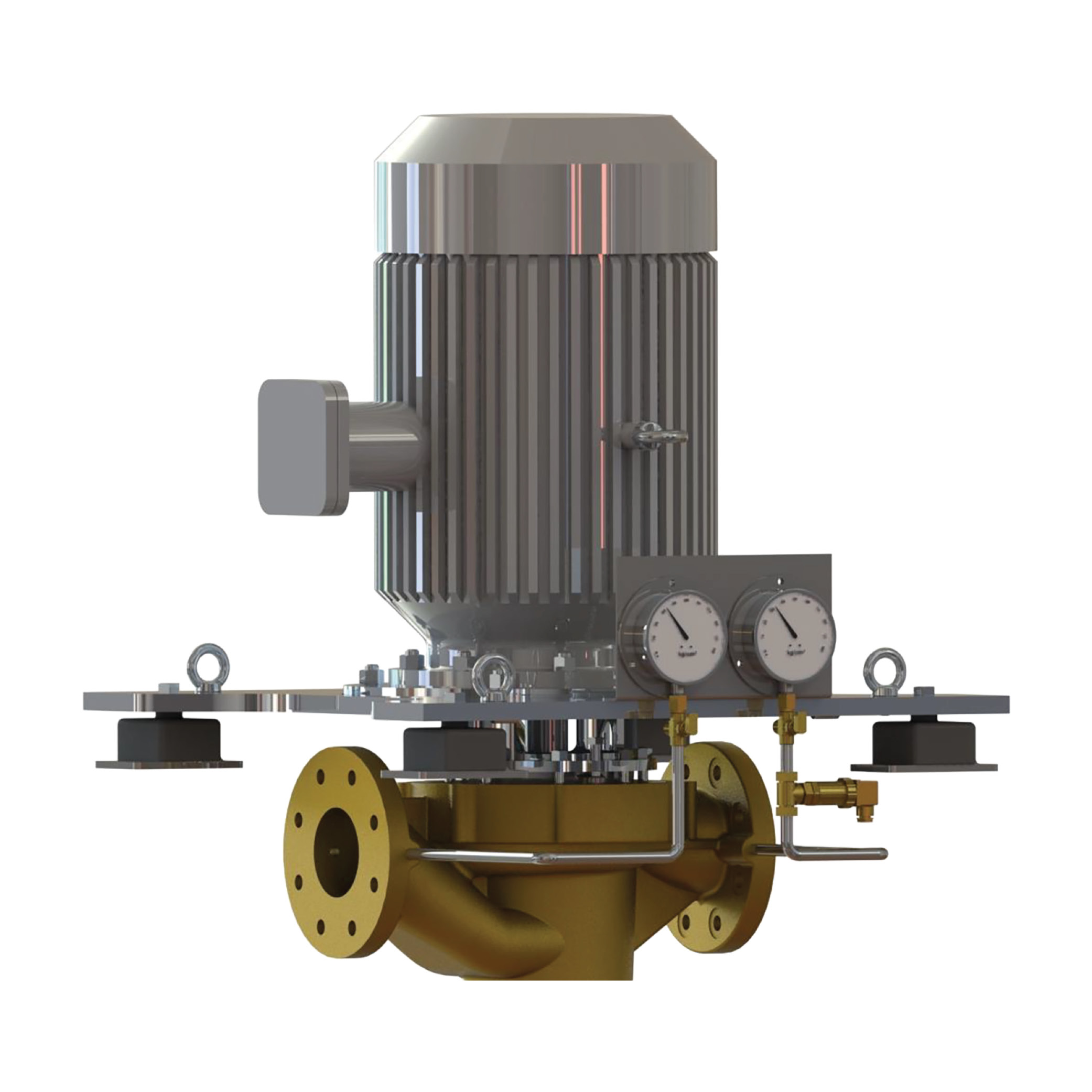

The Kirloskar INM Vertical Inline Monoblock Marine Pump is a compact, high-performance centrifugal pump engineered for demanding marine and offshore applications. Designed in compliance with Indian Navy’s DME-465 standards, it delivers reliable operation for seawater handling, ballast and bilge systems, engine cooling, firefighting, HVAC circulation, and fuel transfer. Its vertical inline construction, back-pullout design, and corrosion-resistant materials ensure space savings, simplified maintenance, high efficiency, and long service life in harsh marine environments.
Product Details
Applications
- Marine Applications - On Board and Offshore
- Sea water
- Ballast and Bilge system
- Air conditioning chilled water
- Fire-fighting and emergency water systems
- Transfer of Fuel oil, light lube oil, diesel etc
- Main and auxiliary engine cooling
- Main seawater ballast
- Brine and HVAC chilled/water circuits
- Cargo / tank cleaning water circulation
- Portable water supply
Specifications
- Delivery size up to 150 mm
- Flow capacity up to 350 m³/hr
- Head up to 100 meters
- Operating speeds: 1450/2900 rpm (50 Hz)
- Operating speeds: 1750/3500 rpm (60 Hz)
- Suction pressure up to 5 kg/cm²
- Working pressure up to 16 kg/cm²
- Fluid temperature handling up to 120°C
Features
- Vertical inline monoblock construction
- Complies with Indian Navy DME-465 requirements
- Compact space-saving design
- Back-pullout arrangement for easy maintenance
- DIN-type mechanical seal for reliable sealing
- Extended motor shaft eliminates coupling requirements
- Shock-mount provision for naval and marine applications
- Corrosion-resistant Nickel Aluminium Bronze/Gunmetal wetted parts
Benefits
- Saves valuable space in marine and offshore installations
- Makes installation faster and simpler
- Reduces maintenance time and effort
- Lowers operating and energy costs
- Provides reliable performance in demanding marine conditions
- Minimizes downtime and improves equipment availability
- Resists seawater corrosion for longer service life
- Ensures smooth, vibration-free operation
Downloads
Product Catalogue
INM
The Kirloskar INM Vertical Inline Monoblock Marine Pump is a compact, high-performance centrifugal pump engineered for demanding marine and offshore applications. Designed in compliance with Indian Navy’s DME-465 standards, it delivers reliable operation for seawater handling, ballast and bilge systems, engine cooling, firefighting, HVAC circulation, and fuel transfer. Its vertical inline construction, back-pullout design, and corrosion-resistant materials ensure space savings, simplified maintenance, high efficiency, and long service life in harsh marine environments.
PRIMARY USAGE
- Marine Applications - On Board and Offshore
- Sea water
- Ballast and Bilge system
- Air conditioning chilled water
- Fire-fighting and emergency water systems
- Transfer of Fuel oil, light lube oil, diesel etc
- Main and auxiliary engine cooling
- Main seawater ballast
- Brine and HVAC chilled/water circuits
- Cargo / tank cleaning water circulation
- Portable water supply
- Delivery size up to 150 mm
- Flow capacity up to 350 m³/hr
- Head up to 100 meters
- Operating speeds: 1450/2900 rpm (50 Hz)
- Operating speeds: 1750/3500 rpm (60 Hz)
- Suction pressure up to 5 kg/cm²
- Working pressure up to 16 kg/cm²
- Fluid temperature handling up to 120°C
- Vertical inline monoblock construction
- Complies with Indian Navy DME-465 requirements
- Compact space-saving design
- Back-pullout arrangement for easy maintenance
- DIN-type mechanical seal for reliable sealing
- Extended motor shaft eliminates coupling requirements
- Shock-mount provision for naval and marine applications
- Corrosion-resistant Nickel Aluminium Bronze/Gunmetal wetted parts
- Saves valuable space in marine and offshore installations
- Makes installation faster and simpler
- Reduces maintenance time and effort
- Lowers operating and energy costs
- Provides reliable performance in demanding marine conditions
- Minimizes downtime and improves equipment availability
- Resists seawater corrosion for longer service life
- Ensures smooth, vibration-free operation
