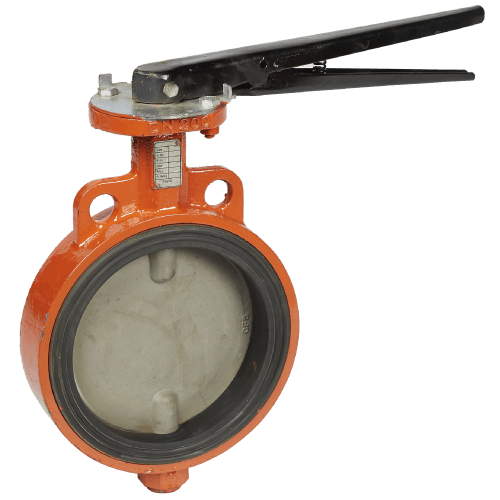

Centric Butterfly Valve
- Enquire Now
Max Head:
Upto 600 mm m
Product Description
Kirloskar Centric Butterfly valves are extensively used for handling various liquids. The Centric Butterfly valves are designed and tested as per IS: 13095/EN 593 (BS 5155)/API 609/API 598/EN 12266 - 1 manufacturing standards.
Product Details
Applications
- Suitable for variety of liquids and gaseous media in water works, power plants, sewage plants, process industries and chemical and petrochemical plants for tight shut-off and control
- Isolating and throttling services
Specifications
- Size Range: 40 mm to 600 mm
- Pressure Rating: PN 6, PN 10 and PN 16
- Material of Construction
- Cast Iron/Ductile Iron (Nylon/Epoxy Coated)
- Ductile Iron/CF8/CF8M
Features
- Top plate double drilled to fit ISO 5211 dimensions
- Centre-lock seat design virtually eliminates any seat movement during the seating and un-seating of the disc
- Stem retention system to provide blow-out proof stem and easy assembly and disassembly of valve
- Operational mode: hand lever/gear box
Centric Butterfly Valve
Kirloskar Centric Butterfly valves are extensively used for handling various liquids. The Centric Butterfly valves are designed and tested as per IS: 13095/EN 593 (BS 5155)/API 609/API 598/EN 12266 - 1 manufacturing standards.
APPLICATIONS
- Suitable for variety of liquids and gaseous media in water works, power plants, sewage plants, process industries and chemical and petrochemical plants for tight shut-off and control
- Isolating and throttling services
SPECIFICATIONS
- Size Range: 40 mm to 600 mm
- Pressure Rating: PN 6, PN 10 and PN 16
- Material of Construction
- Cast Iron/Ductile Iron (Nylon/Epoxy Coated)
- Ductile Iron/CF8/CF8M
FEATURES
- Top plate double drilled to fit ISO 5211 dimensions
- Centre-lock seat design virtually eliminates any seat movement during the seating and un-seating of the disc
- Stem retention system to provide blow-out proof stem and easy assembly and disassembly of valve
- Operational mode: hand lever/gear box
