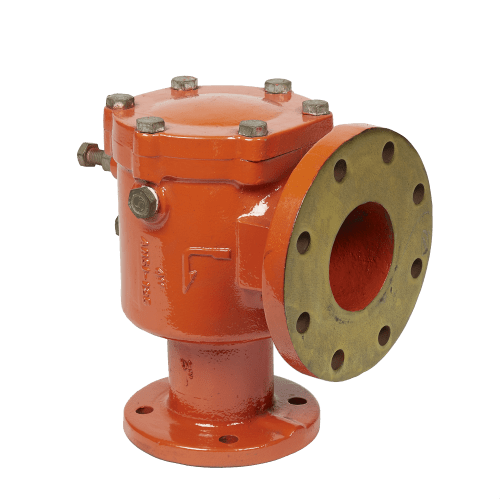

Suction Diffuser Valve
- Enquire Now
Max Head:
Upto 2 mm to 12 mm m
Product Description
- HVAC Building and construction (Multi- storied buildings /shopping complexes /auditoriums / indoor stadium / airports /refrigeration system)
- Industry (pharmaceuticals / bottling plants / chemical / food and beverages)
Product Details
Specifications
- Size Range: 2 mm to 12 mm
- Pressure Rating CL 125, CL 250
Features
- Installed at the inlet of the pump
- Serves as a filter to remove suspended debris
- Straightens the flow at the inlet of the impeller
- Streamlines the flow at inlet of the pump
- Cast Iron body for Class 125 and Ductile Iron for Class 250
- Flanges as per ASME B16.1 standard
- Acts as an 90° elbow
Suction Diffuser Valve
- HVAC Building and construction (Multi- storied buildings /shopping complexes /auditoriums / indoor stadium / airports /refrigeration system)
- Industry (pharmaceuticals / bottling plants / chemical / food and beverages)
PRIMARY USAGE
Specifications
- Size Range: 2 mm to 12 mm
- Pressure Rating CL 125, CL 250
Features
- Installed at the inlet of the pump
- Serves as a filter to remove suspended debris
- Straightens the flow at the inlet of the impeller
- Streamlines the flow at inlet of the pump
- Cast Iron body for Class 125 and Ductile Iron for Class 250
- Flanges as per ASME B16.1 standard
- Acts as an 90° elbow
