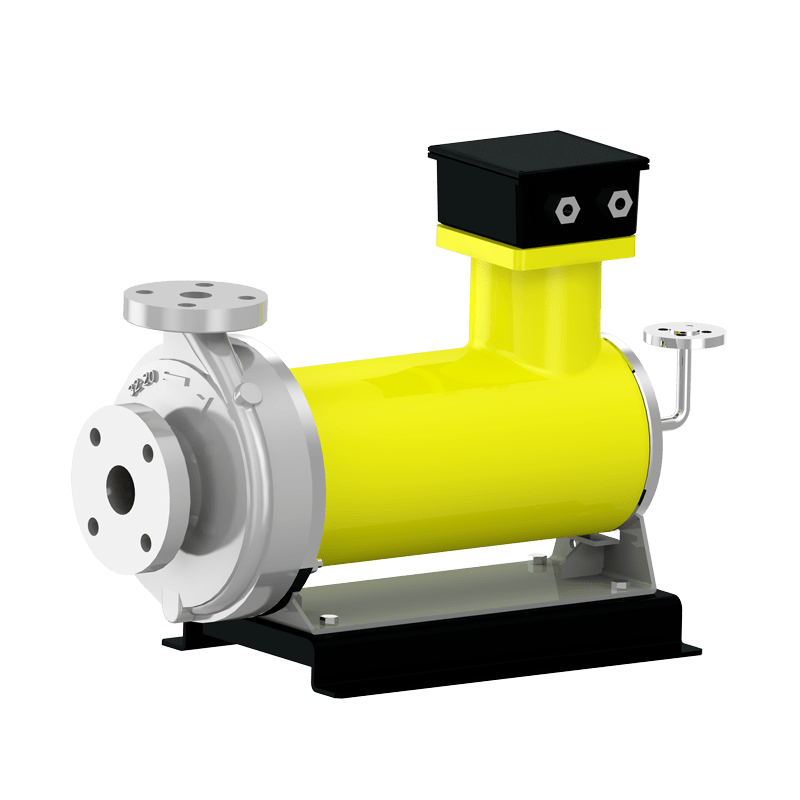

Canned Motor Process Pump - i-CM
- Enquire Now
Max Head:
Upto 60 mMax Capacity:
Upto 4 to 80 m3/hr
Product Description
Kirloskar i-CM process pumps are mainly used for chemical and process handling applications, which are free from suspended solids \\\\ particles. i-CM process pumps are ideal for pumping corrosive and noxious fluids.
Product Details
Applications
- Liquefied gases (e.g. ammonia, freons, carbon dioxide, amines, vinyl chloride, ethylene oxide, phosgene (>150°C), etc.
- Aggressive/toxic/explosive/hazardous/flammable chemicals (sulphuric acid, nitric acid, hydrofluoric acid, hydrocyanic acid, ethanoic acid, formic acid, etc.)
Specifications
- Delivery size ranging from 32 to 50 mm
- Capacity ranging from 4 to 80 m3/hr
- Head up to 60 metres
- Working pressure 16 bar
- Temperature up to 90° C
Features
- i-CM pump is a seal less, glandless and emission-free Canned Motor pump
- Seal less and glandless pump
- Integrated motor design makes it compact in construction and light in weight
Canned Motor Process Pump - i-CM
Kirloskar i-CM process pumps are mainly used for chemical and process handling applications, which are free from suspended solids particles. i-CM process pumps are ideal for pumping corrosive and noxious fluids.
PRIMARY USAGE
APPLICATIONS
- Liquefied gases (e.g. ammonia, freons, carbon dioxide, amines, vinyl chloride, ethylene oxide, phosgene (>150°C), etc.
- Aggressive/toxic/explosive/hazardous/flammable chemicals (sulphuric acid, nitric acid, hydrofluoric acid, hydrocyanic acid, ethanoic acid, formic acid, etc.)
SPECIFICATIONS
- Delivery size ranging from 32 to 50 mm
- Capacity ranging from 4 to 80 m3/hr
- Head up to 60 metres
- Working pressure 16 bar
- Temperature up to 90° C
FEATURES
- i-CM pump is a seal less, glandless and emission-free Canned Motor pump
- Seal less and glandless pump
- Integrated motor design makes it compact in construction and light in weight
