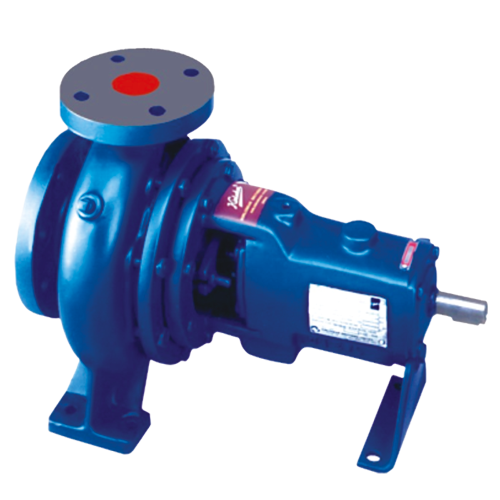

End Suction Pump - CPHM
- Enquire Now
Max Head:
Upto 150 mMax Capacity:
Upto 750 m3/hr
Product Description
Kirloskar CPHM pumps carry a back-pull-out design which enables removing the rotating unit of pump for inspection and repairs without disturbing the pipe connections. The complete range of CPHM water pump is covered by eight driving units thereby reducing inventory and achieving interchangeability of parts. These CPHM water pumps are either gland packed or mechanically sealed.
Product Details
Applications
- Air conditioning
- Firefighting
- Booster services
- Sprinkler system
- Irrigation
Specifications
- Delivery size from 20 mm to 200 mm (3/4 to 8)
- Capacity up to 750 m3/hr (3300 US gpm)
- Head up to 150 metres (480 ft.)
- Temperature (-) 30° C to 90° C
Features
- Conforming to DIN 24256/ISO 2858
- Back pull-out design
- Gland packed/mechanical seal
- 50HZ/60HZ availability
Downloads
Product Catalogue
IOM
End Suction Pump - CPHM
Kirloskar CPHM pumps carry a back-pull-out design which enables removing the rotating unit of pump for inspection and repairs without disturbing the pipe connections. The complete range of CPHM water pump is covered by eight driving units thereby reducing inventory and achieving interchangeability of parts. These CPHM water pumps are either gland packed or mechanically sealed.
PRIMARY USAGE
APPLICATIONS
- Air conditioning
- Firefighting
- Booster services
- Sprinkler system
- Irrigation
SPECIFICATIONS
- Delivery size from 20 mm to 200 mm (3/4 to 8)
- Capacity up to 750 m3/hr (3300 US gpm)
- Head up to 150 metres (480 ft.)
- Temperature (-) 30° C to 90° C
FEATURES
- Conforming to DIN 24256/ISO 2858
- Back pull-out design
- Gland packed/mechanical seal
- 50HZ/60HZ availability
