CORPORATE
RETAIL PUMPS
Large Vertical Turbine Pump - BHR/BHQ/BHM/BHK/BHMa/BHA
- Enquire Now
Max Head:
Upto 240 mMax Capacity:
Upto 55000 m3/hr
Product Description

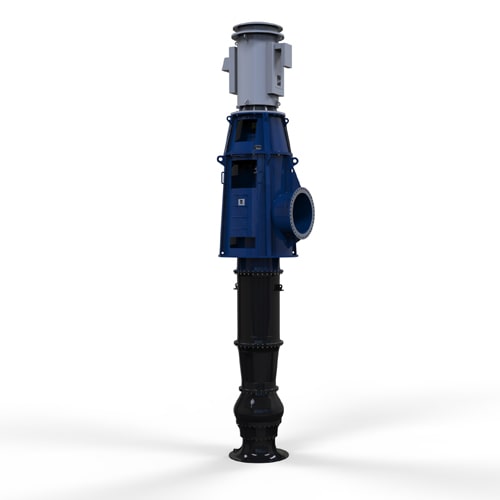

Kirloskar BHR/BHQ/BHM/BHK/BHMa/BHA pumps are constructed rigidly to ensure vibration free operation. BHR/BHQ/BHM/BHK/BHMa/BHA pumps are designed for smooth inflow of water with minimum losses. The hydraulic design of these pumps is being updated with our continuous R&D efforts to meet the concerned higher efficiency and lower submergence requirements, taking care of other parameters such as high reliability and optimum system design. BHR/BHQ/BHM/BHK/BHMa/BHA pumps are single or multi-stage, consisting of bowl assembly, column assembly and driving unit assembly.
Product Details
Applications
- Lift irrigation (vertical and inclined mounting)
- Water supply
- Circulating water for thermal and nuclear power plants
- Various applications in steel, cement industries and refineries
- Handling sea-water on off-shore platforms and dry-docks
- Firefighting
- Flood control
- Condensate extraction
Specifications
- Delivery size up to 2200 mm
- Capacity up to 55000 m3/hr
- Head up to 240 metres
Features
- Vibration-free performance
- Low submergence
- No priming required
- Dry pit/wet pit arrangement available
- Direct drive/right angle gear drive
- Impeller pull-out/non-pull-out
- Bowl pull-out/non-pull-out
- Gland packed /mechanical seal
- 50Hz / 60Hz availability
Downloads
Product Catalogue
IOM
Large Vertical Turbine Pump - BHR/BHQ/BHM/BHK/BHMa/BHA
Kirloskar BHR/BHQ/BHM/BHK/BHMa/BHA pumps are constructed rigidly to ensure vibration free operation. BHR/BHQ/BHM/BHK/BHMa/BHA pumps are designed for smooth inflow of water with minimum losses. The hydraulic design of these pumps is being updated with our continuous R&D efforts to meet the concerned higher efficiency and lower submergence requirements, taking care of other parameters such as high reliability and optimum system design. BHR/BHQ/BHM/BHK/BHMa/BHA pumps are single or multi-stage, consisting of bowl assembly, column assembly and driving unit assembly.
PRIMARY USAGE
APPLICATIONS
- Lift irrigation (vertical and inclined mounting)
- Water supply
- Circulating water for thermal and nuclear power plants
- Various applications in steel, cement industries and refineries
- Handling sea-water on off-shore platforms and dry-docks
- Firefighting
- Flood control
- Condensate extraction
SPECIFICATIONS
- Delivery size up to 2200 mm
- Capacity up to 55000 m3/hr
- Head up to 240 metres
FEATURES
- Vibration-free performance
- Low submergence
- No priming required
- Dry pit/wet pit arrangement available
- Direct drive/right angle gear drive
- Impeller pull-out/non-pull-out
- Bowl pull-out/non-pull-out
- Gland packed /mechanical seal
- 50Hz / 60Hz availability
DOWNLOADS
