• Max Head:
    Upto 150 m

  • Max Capacity:
    Upto 300 m3/hr

Product Description

Kirloskar’s Romak process pumps are used for handling various types of CLEAR & CLEAN chemical liquids with leak-free transportation. These pumps are manufactured to close tolerance and are of rigid construction. Romak (RMK) pump is a magnetic drive pump.

Product Details

Applications

  • Chemicals - paints, solvents, intermediaries, resin, polymers and other acidic and basic chemicals
  • Pharmaceuticals
  • Petrochemicals
  • Suitable for various process industries for clean/clear liquids without any suspended particles

Specifications

  • Delivery size up to 100 mm
  • Capacity up to 300 m3/hr
  • Head up to 150 metres
  • Speed 2900, 1450, 980 rpm at 50 Hz and 3500, 1750, 1150 rpm at 60 Hz.
  • Temperature from (-)50° to 180° C

Features

  • Seal-less and glandless pump
  • Magnetic drive pump comprises permanent magnet
  • Zero leakage
  • Designed as per ISO 2858/DIN EN 22858/ISO 5199 standards

Material Of Construction (moc)

  • Pump casting, casing cover, wear ring and impeller shaft made of stainless steel and tested as per ASTM A351 M – CF8M
  • Pump shaft made of stainless steel and tested as per ASTM A276, Type 316 and 316L
  • Other (MOC) options available such as ASTM A890/890M CD4MCuN-1B Duplex, Alloy ASTM B473 UNS8020, ASTM A494 – Hastelloy B

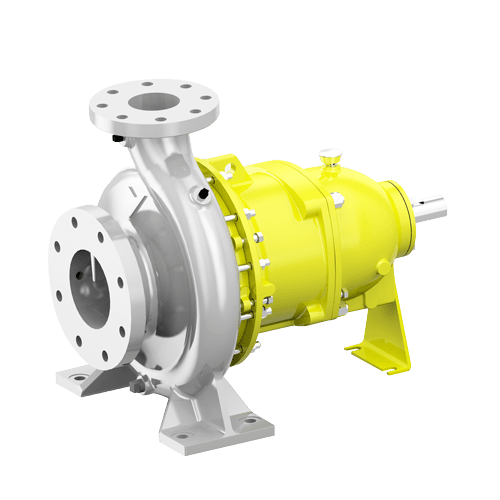

Magnetic Drive Process Pump - ROMAK

Magnetic Drive Process Pump - ROMAK

Kirloskar’s Romak process pumps are used for handling various types of CLEAR & CLEAN chemical liquids with leak-free transportation. These pumps are manufactured to close tolerance and are of rigid construction. Romak (RMK) pump is a magnetic drive pump.

PRIMARY USAGE

APPLICATIONS

  • Chemicals - paints, solvents, intermediaries, resin, polymers and other acidic and basic chemicals
  • Pharmaceuticals
  • Petrochemicals
  • Suitable for various process industries for clean/clear liquids without any suspended particles

SPECIFICATIONS

  • Delivery size up to 100 mm
  • Capacity up to 300 m3/hr
  • Head up to 150 metres
  • Speed 2900, 1450, 980 rpm at 50 Hz and 3500, 1750, 1150 rpm at 60 Hz.
  • Temperature from (-)50° to 180° C

FEATURES

  • Seal-less and glandless pump
  • Magnetic drive pump comprises permanent magnet
  • Zero leakage
  • Designed as per ISO 2858/DIN EN 22858/ISO 5199 standards

MATERIAL OF CONSTRUCTION (MOC)

  • Pump casting, casing cover, wear ring and impeller shaft made of stainless steel and tested as per ASTM A351 M – CF8M
  • Pump shaft made of stainless steel and tested as per ASTM A276, Type 316 and 316L
  • Other (MOC) options available such as ASTM A890/890M CD4MCuN-1B Duplex, Alloy ASTM B473 UNS8020, ASTM A494 – Hastelloy B

DOWNLOADS

Product Catalogues IOM
