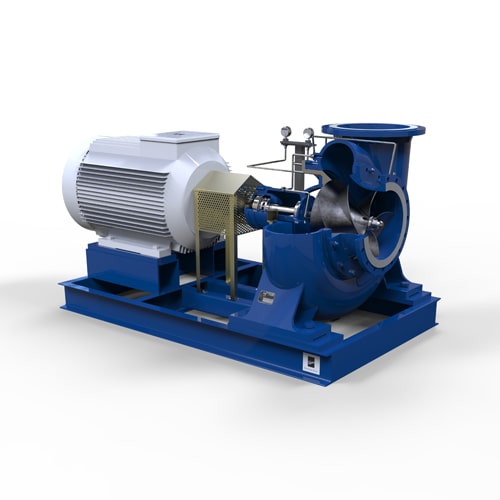

Mixed Flow Pump - MF
- Enquire Now
Max Head:
Upto 30 mMax Capacity:
Upto 7000 m3/hr
Product Description
Kirloskar MF pumps are single stage, horizontal spindle volute type foot-mounted end suction pumps fitted with oil lubricated ball bearings and thrust bearing. These are low head and high capacity water pumps available with either horizontal or vertical delivery options. MF water pumps are provided with semi-open type mixed flow impeller. MF-E and MF-X pumps are provided with enclosed type mixed flow impeller.
Product Details
Applications
- Air-conditioning
- Drainage
- Irrigation
- Storm water
Specifications
- Delivery size from 200 mm to 650 mm (8 to 26)
- Capacity up to 7000 m3/hr (30,820 US gpm)
- Head up to 30 metres (90 ft.)
- Temperature 5° C to 140° C
Features
- Low head, high capacity pumps
- Gland packed/mechanical seal
- 50HZ/60HZ availability
- Option available in horizontal as well as vertical delivery position
Mixed Flow Pump - MF
Kirloskar MF pumps are single stage, horizontal spindle volute type foot-mounted end suction pumps fitted with oil lubricated ball bearings and thrust bearing. These are low head and high capacity water pumps available with either horizontal or vertical delivery options. MF water pumps are provided with semi-open type mixed flow impeller. MF-E and MF-X pumps are provided with enclosed type mixed flow impeller.
PRIMARY USAGE
APPLICATIONS
- Air-conditioning
- Drainage
- Irrigation
- Storm water
SPECIFICATIONS
- Delivery size from 200 mm to 650 mm (8 to 26)
- Capacity up to 7000 m3/hr (30,820 US gpm)
- Head up to 30 metres (90 ft.)
- Temperature 5° C to 140° C
FEATURES
- Low head, high capacity pumps
- Gland packed/mechanical seal
- 50HZ/60HZ availability
- Option available in horizontal as well as vertical delivery position
