Product Description

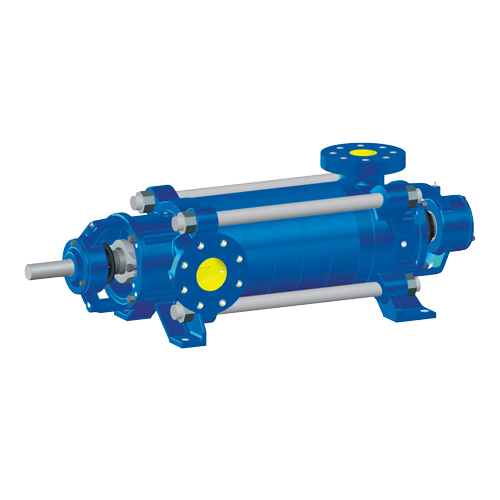

Kirloskar RKB series is a horizontal multistage centrifugal pump. RKB/RKBF/RKBK horizontal multistage centrifugal pumps are side suction pumps with vertical delivery and diffuser type casing. RKB horizontal multistage centrifugal pump series impellers are of radial flow type provided with balancing holes. RKB/RKBF/RKBK horizontal multistage centrifugal pumps have standard grease lubrication, suitable for coupling with electric motors.

Product Details

Applications

Fire-fighting
Booster service
Mine dewatering
Boiler feed
Sprinkler Irrigation
Descaling

Specifications

Delivery size up to 250 mm
Capacity up to 850 m3/hr
Head up to 850 metres
Working pressure 40 to 64 bar
Temperature (-) 40 °C to 140 °C

Features

Gland packed/Mechanical seal
Ring section diffuser casing
Stuffing box cooling for high temperature applications
Available in vertical configuration
Optional orientation available for suction branch
Hydraulic thrust balancing by balancing holes
Multi-cutlet feature enables usage of the pump for different delivery pressures
50 Hz/60 Hz availability

Downloads

Product Catalogue

IOM

RKB PUMP IOM
