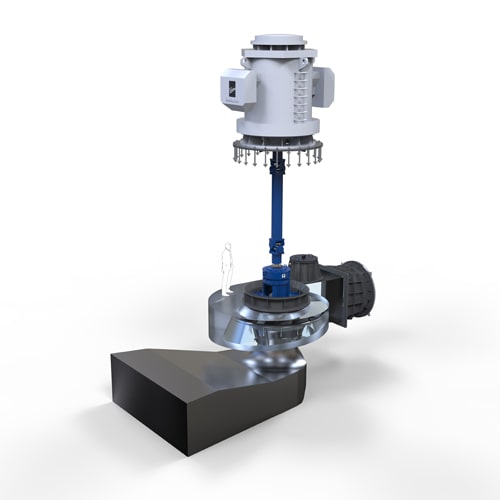

Concrete Volute Pump - CVP
- Enquire Now
Max Head:
Upto 50 mMax Capacity:
Upto 120000 m3/hr
Product Description
Kirloskar Concrete Volute Pump (CVP) are the most suitable pumping options from techno-economic consideration for handling large volumes of water. A CVP guarantees strength and rigidity and virtually eliminates the problems of corrosion and erosion. CVP casing and suction draft tube is made up of cast in-situ concrete with rotating metallic part. CVP pumps comprise three major sections, concrete volute casing and draft tube, grouted embedded components and rotating assembly. These pumps are useful for applications where large quantity of flow is required to be handled, which makes them most suitable for sea-water application. Some of the advantages of KBL manufactured CVPs are high reliability, design simplicity, superior operating performance, vibration-free equipment and low maintenance cost.
Product Details
Applications
- Thermal and nuclear power plants
- Water supply pumps
- Irrigation pumps
- Flood control
- Storm water
- Dry docks
Specifications
- Delivery size up to 6000 mm
- Capacity up to 120,000 m3/hr
- Head up to 50 metres
Features
- High Reliability
- Design Simplicity
- Excellent Corrosion Resistance
- Superior Operating Performance
- Vibration-Free Performance
- Low Submergence
- Low Maintenance Cost
Concrete Volute Pump - CVP
Kirloskar Concrete Volute Pump (CVP) are the most suitable pumping options from techno-economic consideration for handling large volumes of water. A CVP guarantees strength and rigidity and virtually eliminates the problems of corrosion and erosion. CVP casing and suction draft tube is made up of cast in-situ concrete with rotating metallic part. CVP pumps comprise three major sections, concrete volute casing and draft tube, grouted embedded components and rotating assembly. These pumps are useful for applications where large quantity of flow is required to be handled, which makes them most suitable for sea-water application. Some of the advantages of KBL manufactured CVPs are high reliability, design simplicity, superior operating performance, vibration-free equipment and low maintenance cost.
PRIMARY USAGE
APPLICATIONS
- Thermal and nuclear power plants
- Water supply pumps
- Irrigation pumps
- Flood control
- Storm water
- Dry docks
SPECIFICATIONS
- Delivery size up to 6000 mm
- Capacity up to 120,000 m3/hr
- Head up to 50 metres
FEATURES
- High Reliability
- Design Simplicity
- Excellent Corrosion Resistance
- Superior Operating Performance
- Vibration-Free Performance
- Low Submergence
- Low Maintenance Cost
