Vertical Inline Pump - INIL
- Enquire Now
Max Head:
Upto 150 mMax Capacity:
Upto 500 m3/hr
Product Description

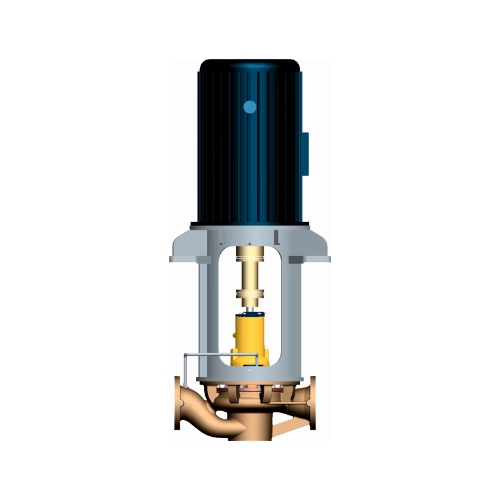

Vertical Inline pump has vertical shaft, with the suction and discharge connections in the casing in-line with each other. Kirloskar INIL pumps are designed for non-explosive clean and thin liquids without any solid particles. KBL vertical inline pump volute casing is robust in construction to avoid stress by pipe work and have radial suction port and radial discharge port. The enclosed impellers are dynamically balanced with extra smooth surface finish to ensure high efficiency.
Product Details
Applications
- Air conditioning sea and chilled water
- Fire fighting
- Transfer of fuel oil, light lube oil, diesel oil, etc.
- Distilling plant feed systems
- Portable water supply
Specifications
- Delivery size up to 200 mm
- Capacity up to 500 m3/hr
- Head up to 150 metres
Features
- Computer aided hydraulic design
- The impellers are enclosed type
- Hydraulic balancing holes
- The high tensile steel shaft is rigid in design and accurately machined
- Stuffing box is sealed by highly engineered mechanical seal
Vertical Inline Pump - INIL
Vertical Inline pump has vertical shaft, with the suction and discharge connections in the casing in-line with each other. Kirloskar INIL pumps are designed for non-explosive clean and thin liquids without any solid particles. KBL vertical inline pump volute casing is robust in construction to avoid stress by pipe work and have radial suction port and radial discharge port. The enclosed impellers are dynamically balanced with extra smooth surface finish to ensure high efficiency.
PRIMARY USAGE
APPLICATIONS
- Air conditioning sea and chilled water
- Fire fighting
- Transfer of fuel oil, light lube oil, diesel oil, etc.
- Distilling plant feed systems
- Portable water supply
SPECIFICATIONS
- Delivery size up to 200 mm
- Capacity up to 500 m3/hr
- Head up to 150 metres
FEATURES
- Computer aided hydraulic design
- The impellers are enclosed type
- Hydraulic balancing holes
- The high tensile steel shaft is rigid in design and accurately machined
- Stuffing box is sealed by highly engineered mechanical seal
