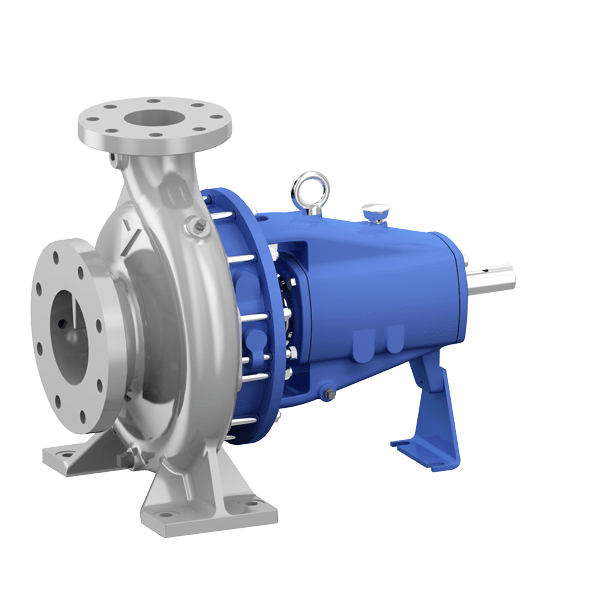

End Suction Process Pump - GK(P)
-
-
Max Head:
Upto 150 m -
Max Capacity:
Upto 500 m3/hr
-
- Enquire Now
Product Description
Kirloskar GK(P) pumps are used for handling various types of chemical liquids. These pumps are manufactured to close tolerance and are of rigid construction. GK(P) pumps are mainly used in process industries. The complete range of GK(P) process pumps is covered by four driving units, thereby reducing inventory and achieving interchangeability.
Product Details
Applications
- Acids/alkalis
- Hydrocarbons, oils
- Various process chemicals
- Food processing units
Specifications
- Delivery size up to 150 mm
- Capacity up to 500 m3/hr
- Head up to 150 metres
- Working pressure 16 - 25 bar
- Temperature up to 180° C
Features
- End-suction centrifugal process pump
- Back pull out design
- Top centerline discharge with foot mounted as well as centerline volute casing
- Availability of cooling jackets to cool stuffing box for liquids having temperature more than 105° C
- ISO 2858/DIN EN 22858/ISO 5199
